Antistatic air gun or Ionizing gun is the ideal technique of removing static, contaminants and dust from three dimensional parts before assembling, packaging, painting or finishing. The ion air nozzel neutralizes the static electricity and cleans at distances up to 2 feet. When ordinary compressed air is used to remove dust and air nozzel for cleaning purpose, its efficiency gets reduced. In case the static charge, which holds the dust to the product is not neutralized, both the the product and the dust will remain statically charged and capable of re-contamination.

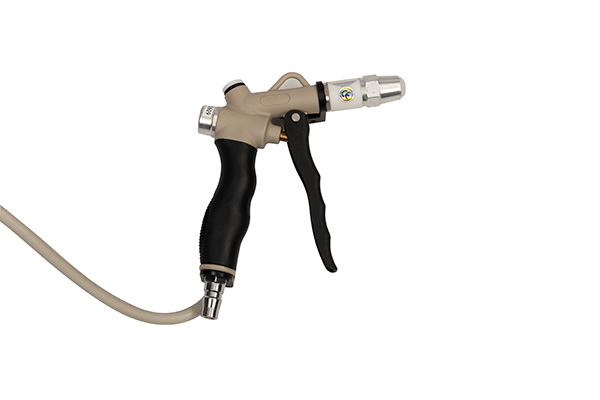

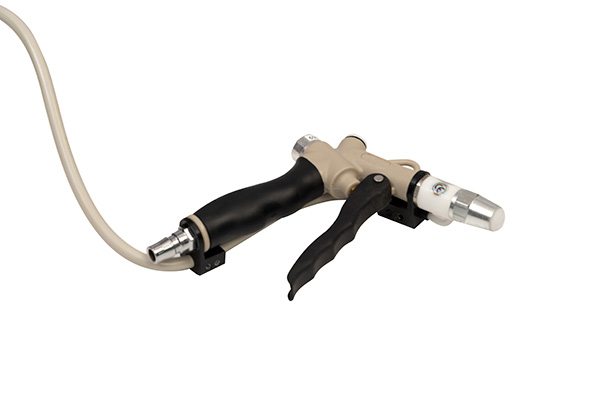

Ionizing air gun consists of a trigger and an ionisation head engineered into the finger guard. When the trigger is pulled air travels at high speed from the Static Elimiator Gun, picking up the ionised air produced by the ionisation head. The ionised air is blown at high speed towards the object. The ionisation kills the static electricity, allowing the dust to be blown off. The object will be static-free and unable to re-attract dust.
| Model No | el-IAG-315 |
| Input voltage | AC220V/50Hz |
| Operating Voltage | AC 5.5 kV |
| Discharge distance | 150-300mm |
| Discharge speed | ≤ 2.0s (150mm from the front of ionizing air gun) |
| Ion balance | -50V~+50V (150mm from the front of ionizing air gun) |
| Noise | ≤ 65db (150mm from the front of ionizing air gun) |
| Wire length | 2.5M (Can be customized according to requirements) |
| Operating temperature | 0-50 °C |
| Compressed air connector | Φ8mm |
| Pressure range | 0.2-0.6 MPa |
| Ozone thickness | ＜ 0.05ppm |
| Ion emission | Positive & Negative ions |
| Air consumption | At 3 bar > 190 litre/min At 5 bar > 250 litre/min |
| Working Air pressure | Clean compressed air at 3-5 bar pressure |

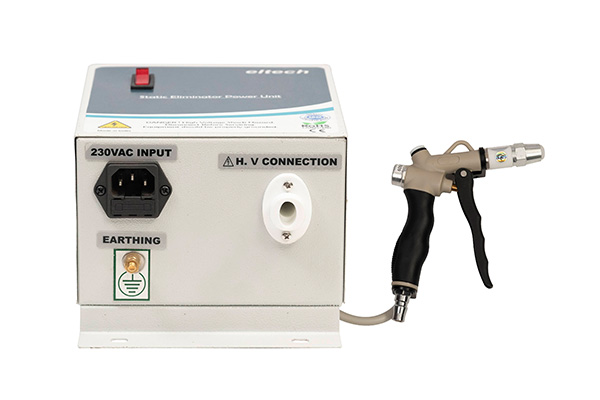

| Supporting power supply | Powered with Power supply el-331 |
| Certifications | CE, RoHs, ISO 9001 : 2015 |
